Development status
Hydraulic Axial Piston Motor/Pump
Test result
- Test method : Done each test like below pictures.

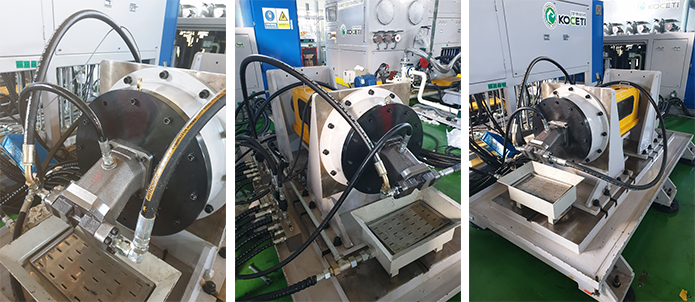

![[그림1. 사축식 피스톤 모터/펌프 테스트]](../images/sub03/result_pic5.png)
[Performance test of Hydraulic Axial Piston Motor/Pump]
Test condition
| Product | Item | Target | Notes |
|---|---|---|---|
| Hydraulic Axial Piston Motor | Displacement | 80 cc/rev | |
| Max.torque | 447 N.m | ||
| Max.pressure | 350 bar | ||
| Max.RPM | 3,450 rev/min | ||
| Volumetric efficiency | 97% | ||
| Mechanical efficeincy | 92% |

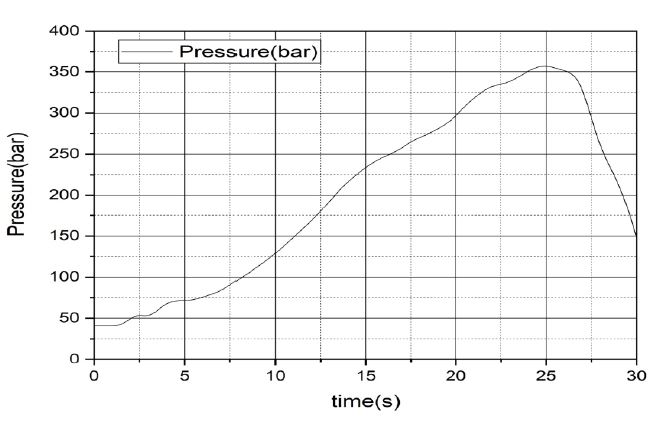

Max.pressure test

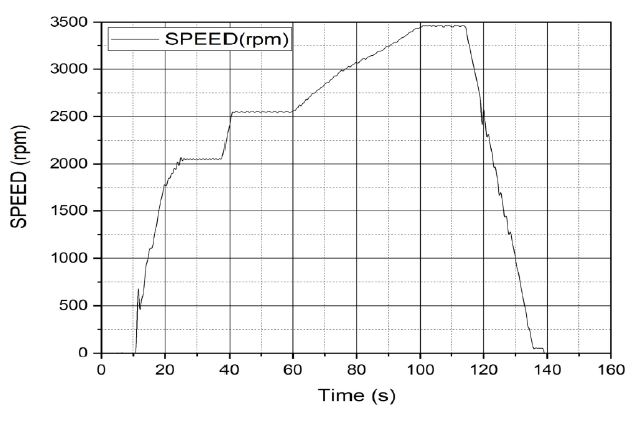

Max.rpm test

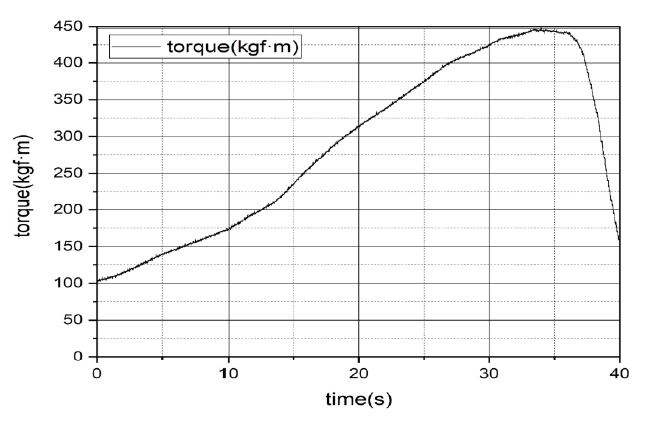

Max.torque test

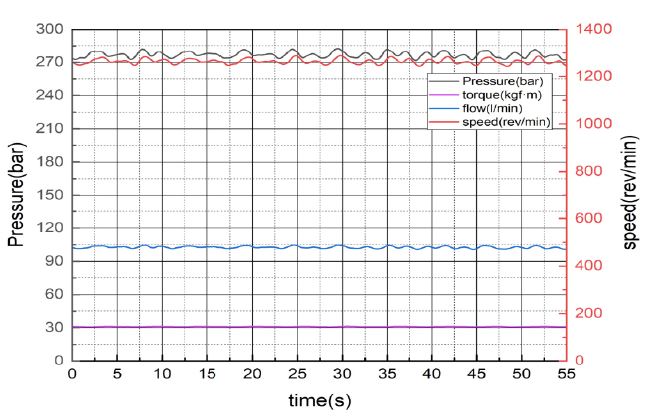

Efficiency test

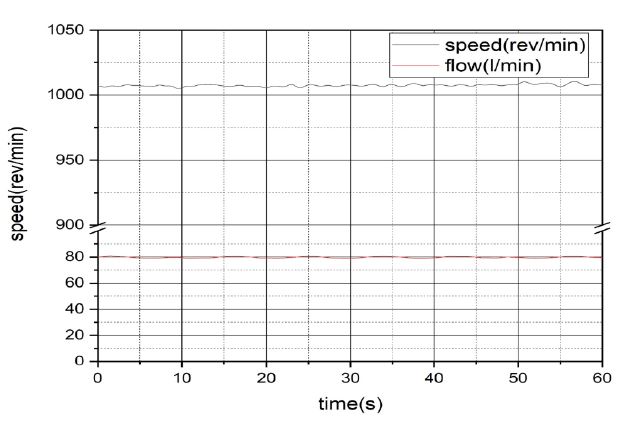

Displacement test
